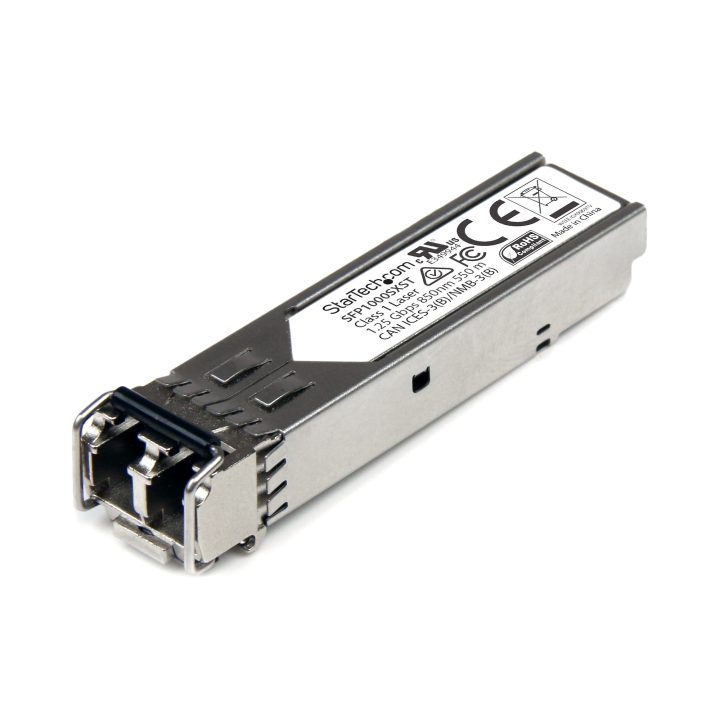

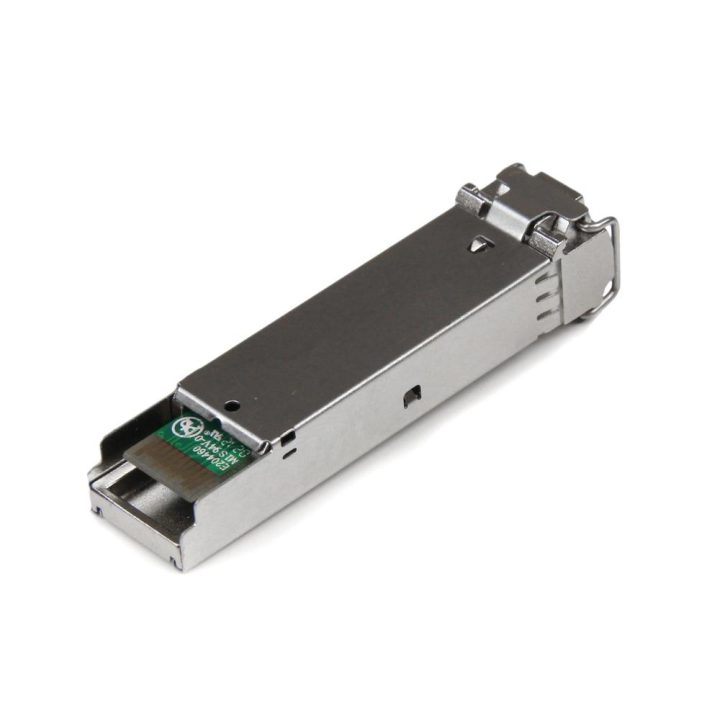

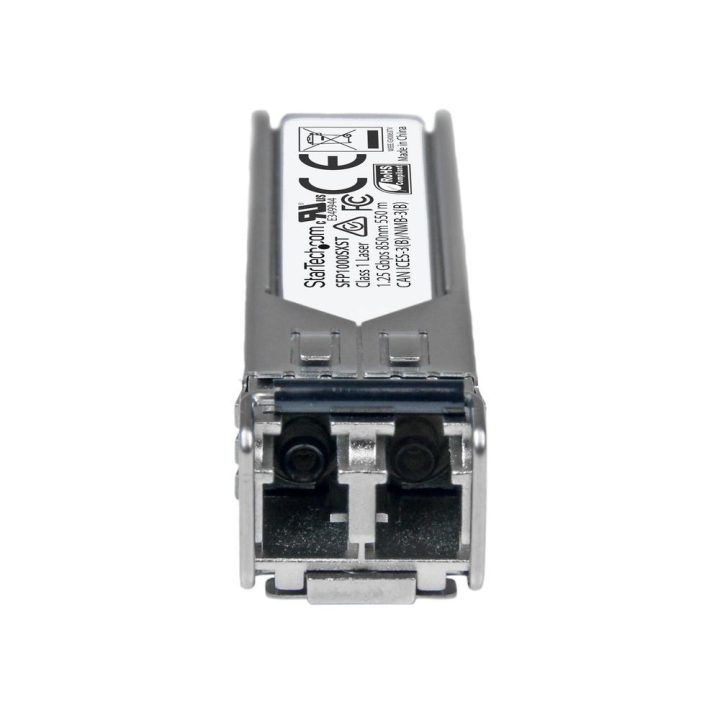

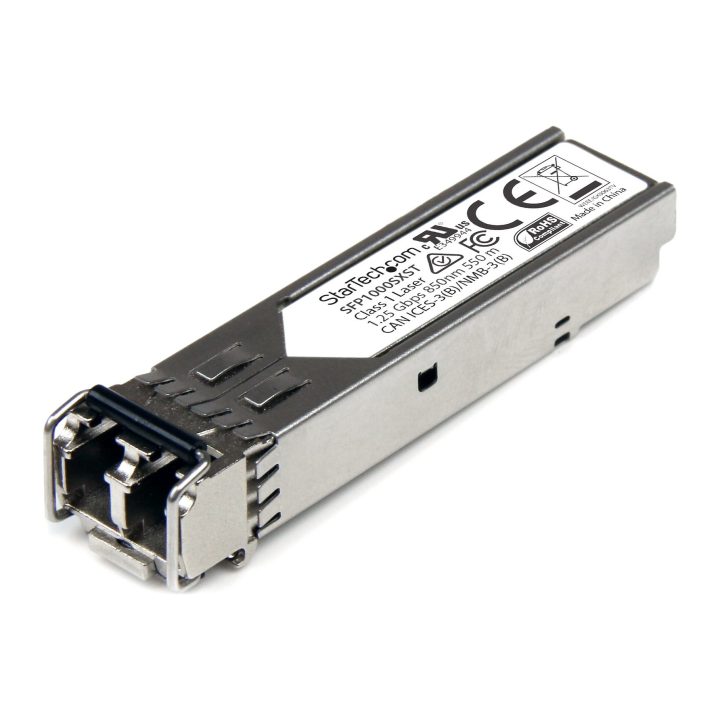

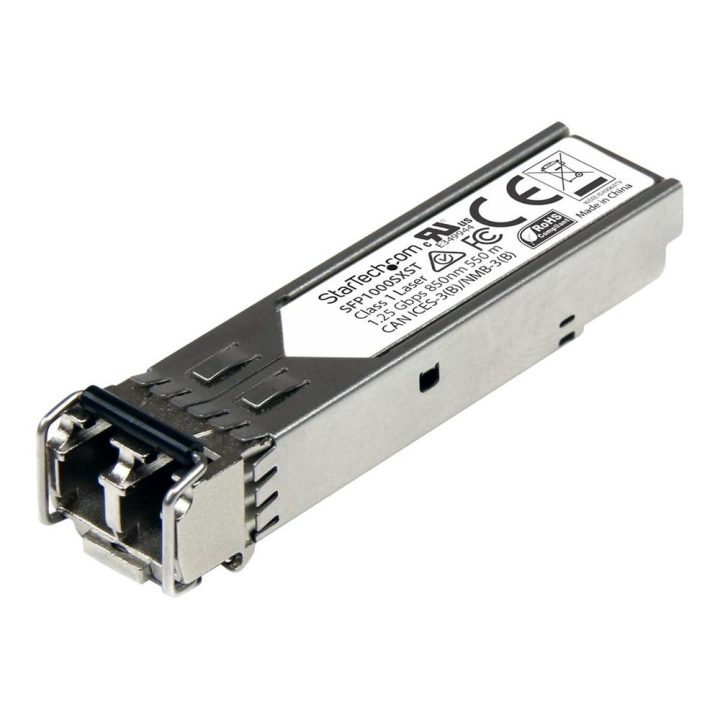

StarTech.com Uncoded MSA SFP Transceiver Module - 1000BASE-SX - 1GbE Multimode Fiber (MMF) Optical Transceiver - 1Gb Gigabit Eth

This StarTech.com SFP transceiver module is designed to establish Gigabit Ethernet connections over multimode fiber optic. It complies with the MSA standard, allowing its use in routers and switches compatible with 1000BASE-SX. It offers a data transfer rate of 1250 Mbit/s and supports hot-swapping to facilitate replacements without interrupting the network.

The device uses an LC fiber connector and operates at a wavelength of 850 nm, reaching a maximum distance of 550 meters. It incorporates Digital Diagnostic Monitoring (DDM) and maintains a power consumption of less than 1 watt. Its dimensions are 13.9 mm wide, 12.6 mm high, and 58.4 mm deep, with a weight of 0.023 kg.

• MSA-compliant SFP interface
• Multimode fiber connection with LC connector
• Maximum range of 550 meters
• Support for Digital Diagnostic Monitoring (DDM)
• Hot-swappable operation
